The BNC (Bayonet Neill-Concelman) connector is a popular type of coaxial connector used for transmitting RF (Radio Frequency) signals. It is widely used in various applications, such as telecommunications, broadcast, audio/video, and industrial systems. BNC connectors come in a variety of configurations, one of which is the BNC DC connector. This variant is specifically designed to handle DC (Direct Current) applications, making it ideal for use in situations where low-frequency signals or power connections are required.
What is a BNC DC Connector?

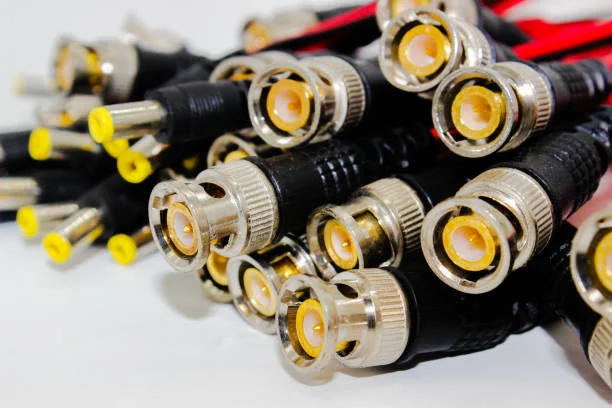

A BNC DC connector is a specific type of BNC connector that is optimized for direct current applications. It provides a secure, reliable connection for transmitting DC signals, such as low voltage power or control signals. The design of the BNC and DC connector is similar to that of a standard BNC connector, with a locking mechanism known as the “bayonet” coupling. However, it may have certain features or internal mechanisms to ensure the connection is stable and safe for DC power transmission.
The BNC and DC connector consists of several key components:
- Male or Female Terminals: These are used for connecting to other BNC-compatible devices.
- Bayonet Locking Mechanism: This ensures a secure connection by twisting and locking the connector into place.
- Insulating Material: The connector’s insulation ensures that electrical signals do not leak or cause short circuits.
- Pin or Socket Contact: These are the components that make direct contact with the signal or power source.
Applications of BNC DC Connectors
BNC DC connectors are used in a variety of applications, including:
- Audio/Video Equipment: Used for low-frequency signal transmission in security cameras, monitors, or communication systems.
- Test Equipment: BNC and DC connectors are frequently employed in oscilloscope probes, signal generators, and similar electronic test devices.
- Telecommunications: They are used for transferring DC power or control signals in telecommunication systems.
- Industrial Systems: BNC DC connectors are commonly used to connect low-power equipment in industrial settings.
Advantages of BNC DC Connectors
- Secure Connection: The bayonet locking mechanism provides a reliable and stable connection, minimizing the chances of disconnection.
- Ease of Use: BNC connectors are designed for quick installation and removal, making them user-friendly.
- Versatility: BNC DC connectors can handle a wide range of DC applications, making them versatile for different types of equipment.
- Cost-Effective: Compared to other high-performance connectors, BNC connectors are relatively affordable while maintaining quality and reliability.
- Durability: BNC connectors are robust and can withstand frequent use, making them suitable for environments where equipment is often connected and disconnected.
How to Choose the Right BNC DC Connector
When selecting a BNC DC connector, several factors should be considered:
- Voltage Rating: Ensure the connector is rated for the specific voltage required by your application.
- Current Rating: Make sure the connector can handle the required current without overheating or becoming damaged.
- Environmental Conditions: If the connector is to be used in harsh conditions (e.g., high humidity, extreme temperatures), choose a connector that is rated for such environments.
- Size and Compatibility: Ensure that the BNC DC connector is compatible with your equipment’s connector type and size.
FAQ (Frequently Asked Questions)
1. What is the difference between a standard BNC connector and a BNC DC connector?
The primary difference lies in the application: a standard BNC connector is typically used for RF (radio frequency) signals, while a BNC DC connector is specifically designed to handle DC signals or low-power applications.
2. Can BNC DC connectors be used for AC signals?
BNC DC connectors are optimized for DC applications. While they may work with AC signals in some cases, they are not ideal for AC power or high-frequency AC signals due to their design.
3. How do I ensure a secure connection with a BNC DC connector?
BNC connectors use a bayonet locking mechanism to ensure a secure connection. Simply align the connector with the matching jack and twist it to lock it into place.
4. What are common uses for BNC DC connectors?
BNC and DC connectors are commonly used in test equipment, audio/video systems, telecommunications, and industrial systems where low-voltage DC power or control signals need to be transmitted.
5. Are BNC DC connectors compatible with other types of BNC connectors?
Yes, BNC and DC connectors are typically compatible with other BNC connectors. However, it’s important to ensure that the connector’s impedance and voltage/current ratings are suitable for the specific application.
6. Can BNC DC connectors handle high power?
BNC connectors, including DC versions, are generally not designed for high-power applications. They are more suited for low-power or signal transmission. For high-power connections, other types of connectors should be considered.
7. How long do BNC DC connectors last?
With proper maintenance and usage, BNC and DC connectors can last for many years. Their durable construction and secure connection mechanism help ensure longevity, even in demanding environments.
Conclusion
The BNC DC connector is a reliable and versatile component for various DC signal applications. With its secure connection, ease of use, and durability, it is a go-to choice for many electronic systems and devices that require low-power DC connections. Whether in test equipment, industrial setups, or telecommunications, the BNC and DC connector plays a vital role in ensuring stable and efficient signal transmission.
