In the world of surveillance systems, the quality of the cabling used is paramount for ensuring reliable, high-definition video transmission. Among the various types of cables available, CAT-6 (Category 6) cable has emerged as one of the most popular and preferred choices for modern CCTV installations. Known for its high performance and reliability, CAT-6 cables can deliver excellent results when it comes to transmitting data and video signals in security setups.
What is CAT-6 Cable?

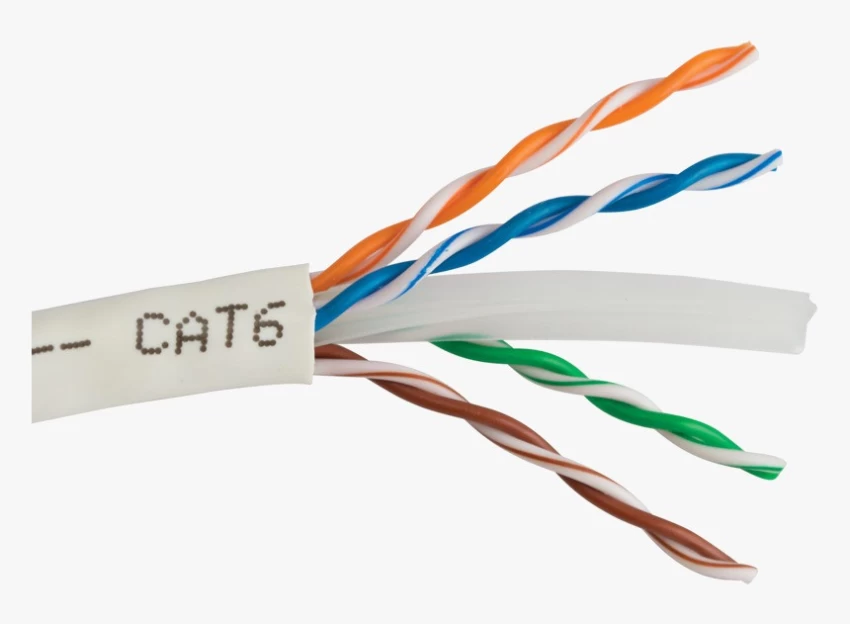

CAT-6 is a type of twisted pair Ethernet cable that is primarily used for networking applications. It is designed to handle higher bandwidths and faster speeds than its predecessors, such as CAT-5e. CAT-6 cables consist of four twisted pairs of copper wires, with each pair designed to reduce interference and cross-talk, making them ideal for environments that require stable and high-speed signal transmission.
Why Choose CAT-6 Cable for CCTV?
- High-Speed Data Transmission: CAT-6 cables are capable of supporting speeds up to 10 Gbps over short distances (up to 55 meters or 180 feet). This ensures that high-resolution video from CCTV cameras can be transmitted without significant delay or degradation, even when dealing with HD or 4K video feeds. It’s particularly useful for IP-based CCTV cameras, which transmit data over a network.
- Superior Bandwidth: The bandwidth of CAT-6 cables is significantly higher compared to earlier categories like CAT-5e. With a bandwidth of up to 250 MHz, CAT-6 cables are well-suited for handling the high-volume data that modern CCTV systems require, ensuring clearer video footage and faster uploads.
- Improved Signal Integrity: CAT-6 cables come with improved insulation and better twisting of wire pairs, reducing electromagnetic interference (EMI) and crosstalk. This ensures stable video signals and a reduction in signal loss, making them an excellent choice for installations in environments with potential interference, such as near power lines or high-frequency devices.
- Longer Cable Lengths: CAT-6 cables can transmit signals over longer distances (up to 100 meters or 328 feet) without losing signal quality. This allows flexibility in CCTV system design, especially for larger properties or businesses where cameras need to be installed far from the central recording or monitoring station.
- Cost-Effective: While CAT-6 cables are slightly more expensive than CAT-5e cables, they offer better performance and future-proofing. For those looking to install CCTV systems now and expand or upgrade in the future, CAT-6 is a worthwhile investment.
- Compatibility with PoE (Power over Ethernet): CAT-6 cables are fully compatible with PoE technology, which allows both data and power to be transmitted through a single cable. This eliminates the need for separate power supplies, simplifying installations and reducing cable clutter. PoE is essential for IP cameras as it minimizes the number of cables required and ensures seamless power delivery.
CAT-6 Cable Applications in CCTV
- IP-Based CCTV Systems: CAT-6 cables are often used for IP (Internet Protocol) cameras that transmit data over a network. With IP cameras, the video feed is sent to a network video recorder (NVR) or cloud storage, making the transmission speed and bandwidth crucial. The high bandwidth of CAT-6 ensures high-quality footage even with multiple cameras.
- HD and 4K Video Surveillance: As CCTV systems continue to adopt higher-resolution cameras, such as 1080p HD or 4K cameras, the demand for high-quality cabling increases. CAT-6’s ability to handle large volumes of data ensures that these higher-definition cameras deliver clear, sharp video footage without signal degradation.
- Long-Distance Video Transmission: For installations where CCTV cameras are placed far away from the monitoring station or NVR, CAT-6 cable ensures that video signals are transmitted over longer distances without loss of quality. Its capability to cover 100 meters of distance makes it an ideal choice for larger properties, industrial complexes, and campuses.
- PoE Cameras: Many modern IP cameras use PoE to receive power directly through the network cable. CAT-6 cables are perfect for PoE applications because they can handle both the data and power transmission, reducing the need for extra power adapters and simplifying installations.
Installation Tips for CAT-6 Cable in CCTV Systems
- Plan Cable Runs Carefully: When installing CAT-6 cable, ensure that the cable runs are as straight as possible to avoid signal degradation. Avoid sharp bends, as this can compromise the quality of the signal.
- Use Quality Connectors and Tools: The integrity of the connection is as important as the cable itself. Use high-quality RJ-45 connectors and a proper crimping tool to ensure a secure and reliable connection.
- Consider Environmental Factors: If the cable is being run outdoors or in harsh environments, choose outdoor-rated CAT-6 cables that come with a UV-resistant jacket. This will protect the cable from exposure to sunlight, moisture, and extreme temperatures.
- Test the Cable After Installation: Always test the cable after installation to ensure that it is working correctly and that there is no signal loss. Using a cable tester can help detect any issues with the wiring or connections.
Conclusion
CAT-6 cable offers an ideal balance of performance, cost-effectiveness, and future-proofing for modern CCTV systems. Whether you are setting up an IP-based CCTV system, installing PoE cameras, or upgrading an older system, CAT-6 cables ensure high-quality, interference-free video transmission over long distances. With the growing demand for higher resolution cameras and greater bandwidth, CAT-6 is a reliable choice that can handle the demands of today’s advanced video surveillance technology.
By choosing the right cabling for your CCTV installation, you are investing in the long-term performance and reliability of your security system. With CAT-6 cable, you can be assured that your video surveillance will deliver clear, detailed footage every time.
