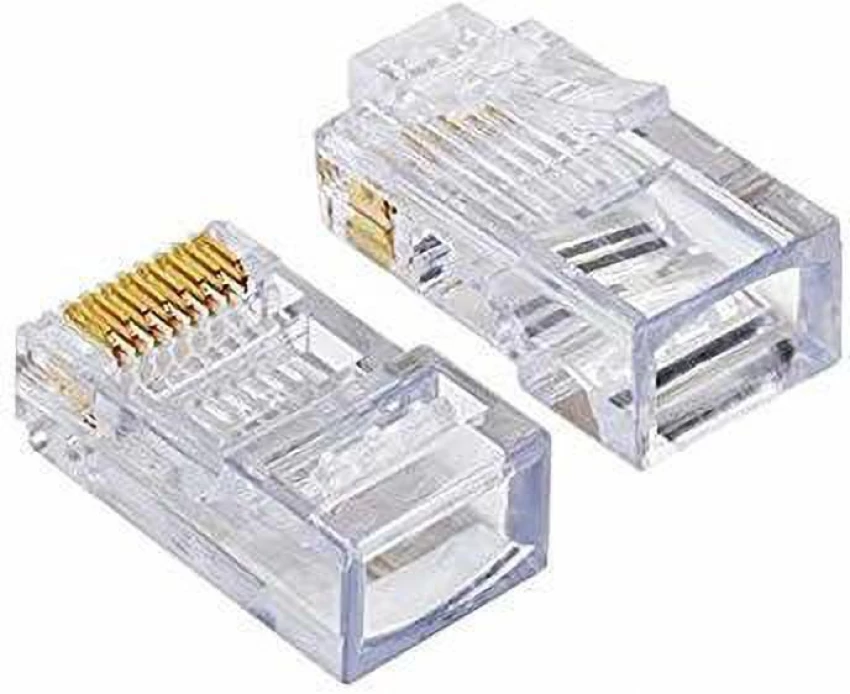

The RJ-45 connector is one of the most commonly used connectors in the world of networking. Its primary function is to connect Ethernet cables to networking devices like computers, routers, and switches. This small but powerful component plays a crucial role in ensuring the stable and efficient transmission of data over local area networks (LANs).
What is an RJ-45 Connector?
RJ-45 (Registered Jack-45) is a standardized 8-pin connector used in Ethernet networks. It’s often referred to as an Ethernet connector or network jack. This connector is typically used with Cat 5e, Cat 6, and Cat 6a cables, enabling high-speed data transmission between devices.
The Registered Jack-45 connector features eight metal contacts that align with the corresponding wires inside the Ethernet cable. These wires transmit data in a way that ensures the reliability of the network, allowing you to transfer large amounts of information with minimal interference.
Types of RJ-45 Connectors
- Shielded RJ-45: These connectors have an additional layer of shielding to protect the signal from electromagnetic interference (EMI). Ideal for environments with a high amount of electrical noise.
- Unshielded RJ-45: The most common type, these connectors do not have extra shielding and are suitable for most home and office networks where EMI is minimal.
- Straight-Through RJ-45 Cable: This is the most common type of Ethernet cable where both ends have the same wiring standard (either T568A or T568B).
- Crossover RJ-45 Cable: Used to connect two devices directly without the need for a switch or hub. One end follows T568A and the other T568B wiring standard.
How Does an RJ-45 Connector Work?
The Registered Jack-45 connector connects to the wiring inside an Ethernet cable, linking a device to a network. Each of the eight pins corresponds to a different wire, and depending on the wiring standard (T568A or T568B), the arrangement of the wires changes.
When you insert an Registered Jack-45 connector into a port, the pins inside the connector make contact with the metal contacts inside the network jack. This completes the electrical circuit, enabling data transmission between devices.
Advantages of RJ-45 Connectors
- High-Speed Performance: Registered Jack-45 connectors support speeds ranging from 10 Mbps to 10 Gbps, depending on the type of Ethernet cable used.
- Versatility: Registered Jack-45 connectors are used in various network environments, from home networks to large enterprise data centers.
- Durability: The connectors are designed to withstand frequent plugging and unplugging, making them ideal for everyday use.
- Standardization: Registered Jack-45 connectors are a globally recognized standard, ensuring compatibility across devices and networks.
FAQ About RJ-45 Connectors
Q1: What does RJ-45 stand for?
A1: RJ-45 stands for “Registered Jack-45,” a standardized 8-pin connector used for networking applications, primarily Ethernet connections.
Q2: Can I use RJ-45 connectors for phone lines?
A2: No, RJ-45 connectors are specifically designed for Ethernet connections. Phone lines typically use RJ-11 connectors, which are smaller and have fewer pins.
Q3: What is the difference between T568A and T568B wiring standards?
A3: T568A and T568B refer to two different wiring standards for Ethernet cables. The difference lies in the arrangement of color-coded wires inside the cable. Both standards work the same, but consistency across your network is essential.
Q4: Can I crimp my own RJ-45 connectors?
A4: Yes, you can crimp your own RJ-45 connectors using a crimping tool, but it requires precision to ensure proper connections. It’s recommended for those with basic networking skills.
Q5: How do I know if my RJ-45 connector is working properly?
A5: If your network connection is stable and you’re able to transfer data without issues, your RJ-45 connector is functioning properly. If not, you may need to check the wiring, replace the connector, or inspect for physical damage.
Q6: Can an RJ-45 connector be used with fiber optic cables?
A6: No, RJ-45 connectors are designed for copper Ethernet cables. Fiber optic cables use different connectors such as SC, LC, or ST connectors.
Q7: What is the maximum cable length for an RJ-45 Ethernet connection?
A7: The maximum length for an Ethernet cable using RJ-45 connectors is typically 100 meters (328 feet) for speeds up to 1 Gbps. Beyond this distance, signal degradation may occur, causing connection issues.
Conclusion
The RJ-45 connector plays an indispensable role in modern networking. Its ease of use, compatibility with a wide range of devices, and ability to support fast data transmission make it a popular choice for Ethernet networking. Whether you’re setting up a home network or managing a corporate IT infrastructure, understanding the RJ-45 connector will ensure you can build a robust, efficient network.
